Digital x ray machine with good prices

Name: Digital x ray machine with good prices
Brand: Logermay
Price: 3 USD

Wholesale Digital x ray machine with good prices from china suppliers

Place of Origin : Jiangsu, China

Brand Name : Logermay

Model Number : LGM-1026

Power Source : Electric

Warranty : 1 Year

After-sale Service : Return and Replacement

Material : Metal, Plastic, Steel

Shelf Life : 6months

Quality Certification : C-tick

Instrument classification : Class II

Safety standard : MOL

Product name : Xray

Properties : Medical X-ray Equipments & Accessories

Voltage: : Singl phase 220V/380V± 10%

Capacity : 10KVA

moving in length : >1350mm

Moving in breadth : >360mm

Gross weight : 700Kg

Frequency: : 50HZ

Packaging Details : WOODEN CASE

Port : shanghai port

Supply Ability : 1000 Set/Sets per Month

Price : $3,200.00 - $4,000.00/Sets

Contact Now

Product Description

Digital x ray machine with good prices

Product description

Usage:

General photography, ray-filter photography

Main Features:

1.Single focus, full-wave rectifier, combined x-ray generator
2.SCM controll(easy to maintain and repai)

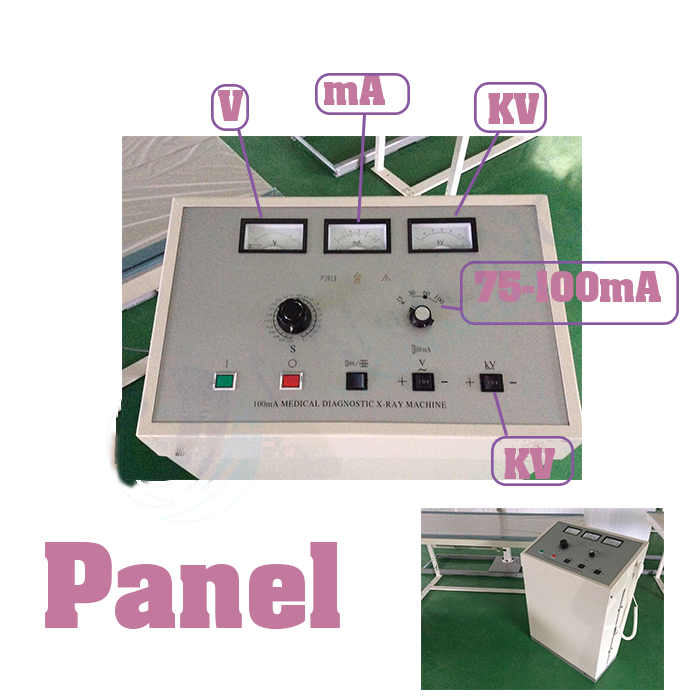

3.High visual and operational console with LCD monitor
4.Perstore 8 kinds of photography parameters and select, modify.store the parameters under the condition of choice
5.Power voltage(V),photograph kilovolt(KV) infinitely variable control
6.Premier high voltage with high power scr zero control circuit
7.Function of load chains, exposure time control, auto alarm, preheat filament, subasseblies temperature control, and so on
8.Cantilever structure makes the small volume and easily moving

Specification

Demand of power supply	Veitage	Singlephase 220V/380V±10%
		Frequency	50Hz±1Hz
		Capacity	10kV.ρ
		Internal resistance	220V:0.6 Ω 380V:2 Ω
Photograph	Voltage	50-90kV
		Current	(small focus):16mA,
		Current		(big focus):32mA,63mA,100mA
		Time	0.04 - 6.3s, 22 grades together
high-voltage transformer unit	Capacity	7kVA
		Max. DC output voltage	90kV
		Max.DC output current	100mA
X-Ray tube	Model	XD4-2.9/100
X-Ray tube		Focus	(small focus):1.8mm (big focus):4.3mm
Photographic bed	Bed face (L×W×H)	1900mm×695mm×700mm
		Ray-filter	(Grid density): N28
				(convergence distance): 100cm
				(Grid ratio): r8
Pillar of X-Ray source unit	moving in length	> 1350mm
		movingin breadth	>360mm
		moving up and down	720-1800mm
Maxsize cassette for photograph			365mm432mm
Gross weight	700Kg
Net weight	550Kg
External dimensions	2180800130mm

Focus of X-Ray tube	Photograph current(mA)	Max Photograph Voltage(KVp)	Max allowable exposure time(S)
Small focus	15	90	6.3
Big focus	30	90	6.3
		60	90	6.3
		100	85	2.5
